Hello dear friends!
This last weekend I tried an old idea I had fooling around my head for years regarding a crystal set. It is a simple way of enhancing selectivity (not sensitivity, strictly speaking) without resorting to an active circuit. The attached schematic explains what I did. It is a sort of “passive” regenerative circuit that utilizes residual RF energy present after AM detection, steering it back to the tuning tank in correct phase with the incoming AM-modulated signal. With this add-on you get a sharper tuning of received stations.
I have tried it with a tree-antenna boosting a ferrite-antenna crystal set and with a tuned loop antenna, also as a booster of the ferrite-type crystal set. It remains testing the receiver with my 11-meter long and 7-meter tall outside aerial and a good ground connection (so far, a connection to a cold water tap)
Please let me know how it works for you.
Kind regards from Lima.
Ramon
SRI, nemam čas na překlad ani sem dát všechny komentáře. Pokud budete chtět napsat Ramonovi (anglicky nebo španělsky) pošlete to mě a já to přepošlu. Sám jsem zatím neměl čas to zkoušet a obávám se, že tak měsíc mít čas ještě nebudu....pak se na to mrknu krysím vokem.

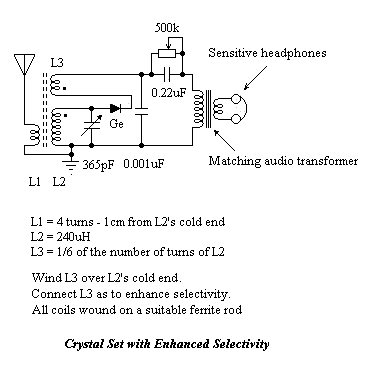

Selectivity enhancer for crystal set
)
